AVIOT TE-BD21f

World's First Hybrid Triple Drivers True Wireless Earphones

​

  • VGP Lifestyle 2019 Summer Gold Award and Lifestyle Award

  • *World's first True Wireless Earphones equipped with a hybrid triple drivers, aiming for the apex in sound

  • “Japan tuned” sound quality

  • Latest QCC3020, continuously play for a maximum of 7 hours

  • Light and compact at only 5.4g per side, IPX5 level waterproof

  • Newly developed internal antenna, eliminating drop out even in places with high interference

  • Aluminium composite body, helps prevent the influence of outside noise

  • AVIOT exclusive CP355 earpieces by SpinFit

  • 日本VGP2019 Summer 金賞及Lifestyle大賞

  • *首創2鐵1圈單元組合，配合PET鈦複合振膜，音色超越同級

  • 通過3,000小時以上的聽力測試，確保平衡而細膩的日系音色

  • 最新Qualcomm QCC3020晶片，可連續播放最多7小時

  • 機身輕巧，每側僅 5.4克，符合IPX5防水規格

  • 全新內置天線，即使在高干擾的地方，連接亦非常穩定

  • 由優質純硬鋁合金切碎部件製成的滾花機身，有助抑制外界噪音

  • SpinFit為AVIOT特製的CP355耳塞套，佩戴舒適，提升音樂真實感

​

*According to the July 2019 survey 根據2019年7月之調查

​

Price: $1580

產品停產 (Product EOL)

Japan's completely wireless earphones: aiming for the apex in sound

It is equipped with a hybrid triple driver, the likes of which is nearly non-existant for TWS around the world. We conducted tuning and acoustic design for beautiful, complete playback of everything from very low pitch ranges to high pitch ranges. It has a base of flat tone balance, and at the same time offers highly superior clarity; it makes vocals sound radiant, as though the singer was before your eyes.

Screen Shot 2019-10-31 at 4.45.17 PM.png
Hybrid Driver

A hybrid between a dynamic driver, which has low warping in low pitch ranges, and a balanced armature driver, which is highly sensitive, high speed, and is good at replay in the mid- and high-pitch ranges is an ideal structure for a speaker. However, designing cross over circuits and miniature versions, and it consumes a lot of electricity, and the reality is that it is not often seen in wireless earphones. AVIOT used all of their portable integrated technology and power saving technology to make portability and playback over long periods possible.

Screen Shot 2019-10-31 at 4.45.27 PM.png
An airy lightness, unlike any hybrid TWS

With the latest QCC3020 and the low energy design, it has a light body, at only 5.4 grams per side, and can continuously play for a maximum of 7 hours.

*Play time may be shorter when using a more high quality apt X codex, and may depend on broadcast status and volume.

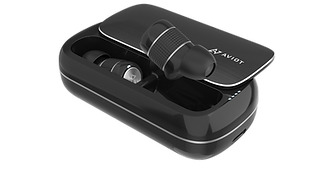

The charging case, to protect its high function and recharge

Light (about 51g) and with a sleek design, it holds roughly 500mAh, and allows for roughly 3 recharges. We used a USB Type-C terminal to increase convenience.

More connections with AVIOT

With our high frequency circuit technology design and implementation knowhow, we have designed a new internal antenna inside of the earphones. We succeeded in suppressing sound drop out, even in places with high interference, such as inside of trains or stations.

Aluminum composite body

The knurled portion of the earphones are made using our best parts made from pure duralumin. It is not only pleasing to the touch, but also helps prevent the effects of outside noise.

AVIOT exclusive earpieces by SpinFit

It includes the CP355 earpieces from SpinFit. This not only improves wear-feel, but also improves the feeling of the low pitch ranges and the reality of the mid- and high-pitch ranges.

2 color options：Black and Silver


Specifications​​

​

  • Drive method:  Hybrid type combining dynamic and balanced armature types.

  • Driver: Dynamic type x 1 unit, balanced armature type x 2 units

  • SoC: Qualcomm QCC3020

  • Driver size: 9mm (dynamic type)

  • Built-in mic for talking:: MEMS mic

  • Replay frequency: 20Hz - 20kHz

  • Earphone weight: roughly 5.4g (per side)

  • Maximum talking time: 6 hours

  • Maximum playing time: 7 hours *When apt-X is used for the coding, the playing time is approximately 20%-30% shorter.

  • Charging time: Approx. 2 hours

  • Supported coding: SBC, AAC, aptX

  • Supported profiles: A2DP, AVRCP, HFP, HSP

  • Charging port: USB Type C

  • Waterproof specification: IPX5

  • Bluetooth version: 5.0

  • Number of Bluetooth multi-pairing registrable devices: 7

  • Bluetooth multi-points: 1 device

​

Accessories​

  • USB Type C cable x 1

  • Standard earpiece of each size x 1 color x 1 pair S/M/L

  • SpinFit CP355 of each size x 1 pair SS/S/M

  • Pouch

  • User manual

​



​

​

​

​
